Deco S7 AC1900 Whole Home Mesh Wi-Fi System

WIRELESS
Standards and Protocols	Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds	AC1900 5 GHz: 1300 Mbps (802.11ac) 2.4 GHz: 600 Mbps (802.11n)
WiFi Range	2-4 Bedroom Houses (2-pack) TP-Link Mesh Technology Optional Ethernet backhaul works together to link Deco units to provide seamless coverage 3× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity	Medium Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients

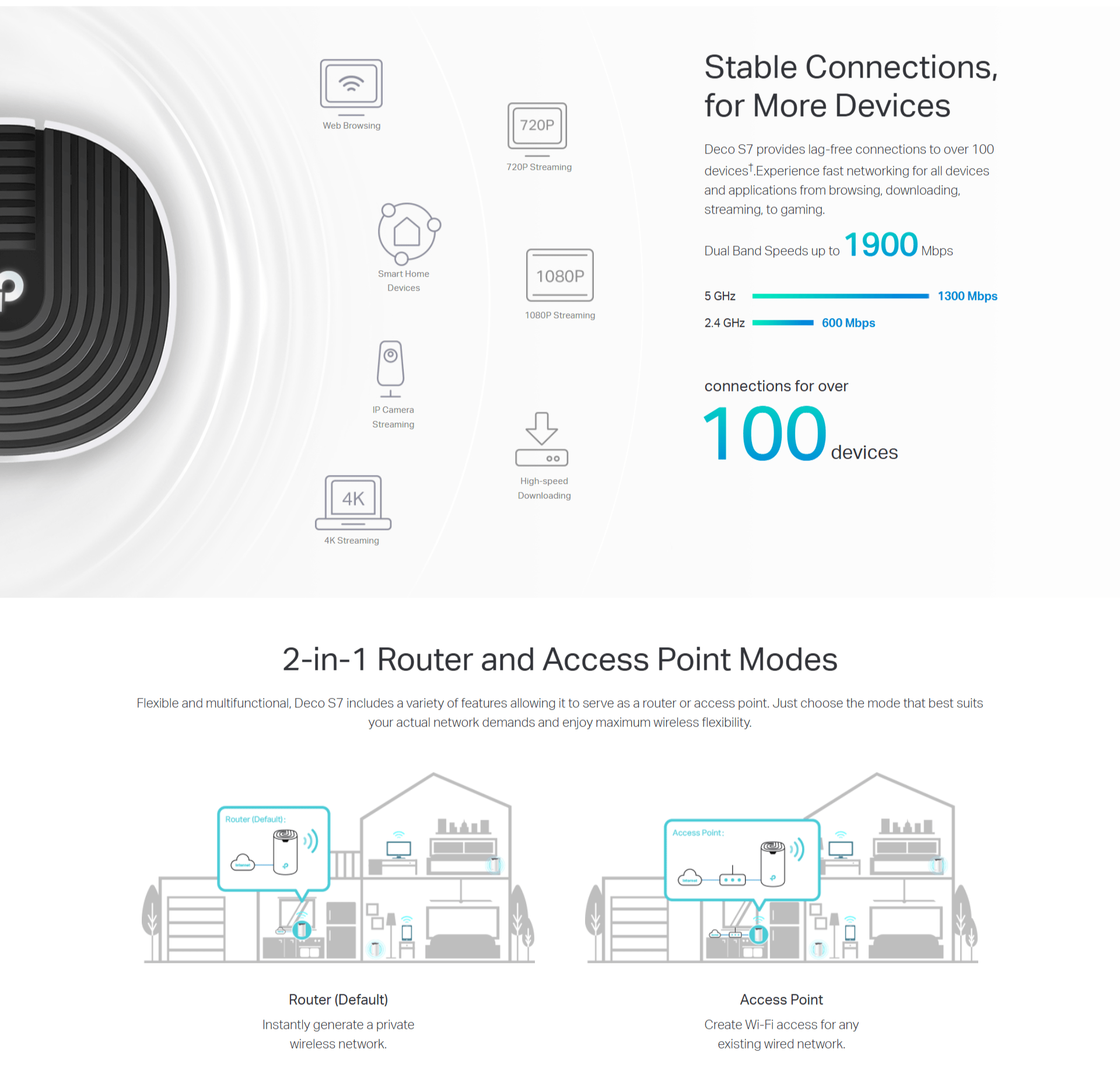

Working Modes	Router Mode Access Point Mode

SECURITY
Network Security	SPI Firewall Access Control
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
WiFi Encryption	WPA-Personal WPA2-Personal

HARDWARE

Ethernet Ports

3× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing

Buttons

Reset Button

SOFTWARE
Protocol	IPv4 IPv6
Parental Controls	URL Filtering Time Controls
WAN Type	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link

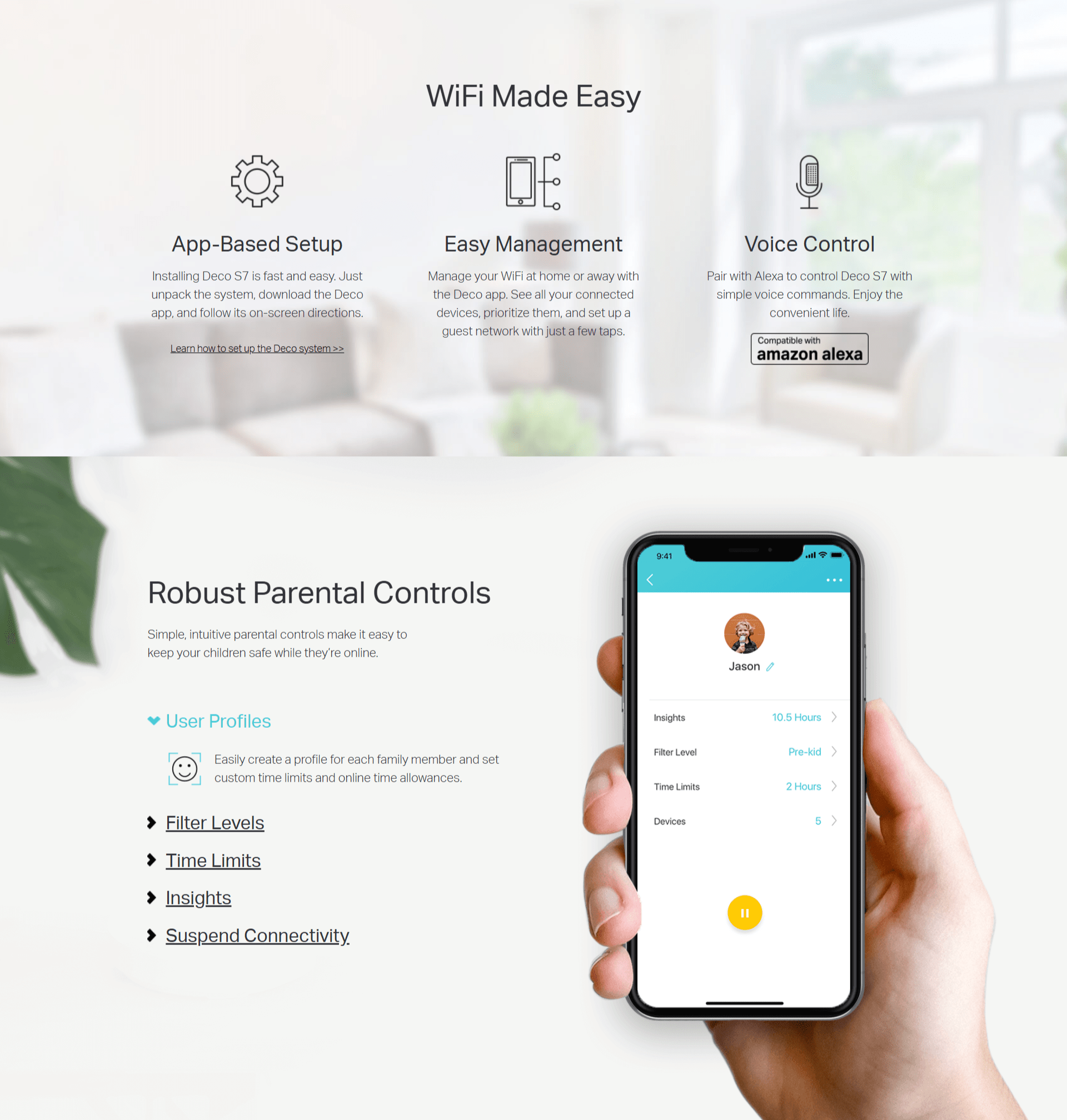

Management Features	Deco App

OTHER

Network Services Enabled by Default

Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP

DNS
DNS
• Port: 53 Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP

App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP

TEST DATA
WiFi Transmission Power	CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz)

PHYSICAL
Dimensions (W×D×H)	6.4 × 3.6 × 3.6 in (162.3 × 90.7 × 90.7 mm)
Package Content	Deco S7 (3-pack) 3 Deco S7 Units 1 RJ45 Ethernet Cable 3 Power Adapters Quick Installation GuideDeco S7 (2-pack) 2 Deco S7 Units 1 RJ45 Ethernet Cable 2 Power Adapters Quick Installation GuideDeco S7 (1-pack) 1 Deco S7 Unit 1 RJ45 Ethernet Cable 1 Power Adapter Quick Installation Guide

OTHERS
Certification	CE, FCC, RoHS, NCC, BSMI, JRF, JPA, VCCI
System Requirements	Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.

^†Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput. wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.

^‡Use of MU-MIMO requires clients that also support MU-MIMO.

^§Clients need to support 802.11k/v and may require additional setup. Performance may vary depending on the client device.

△All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.

Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
