Deco X20 AX1800 Home Mesh Wi-Fi 6 System

WIRELESS
Standards and Protocols	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	4-6 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range

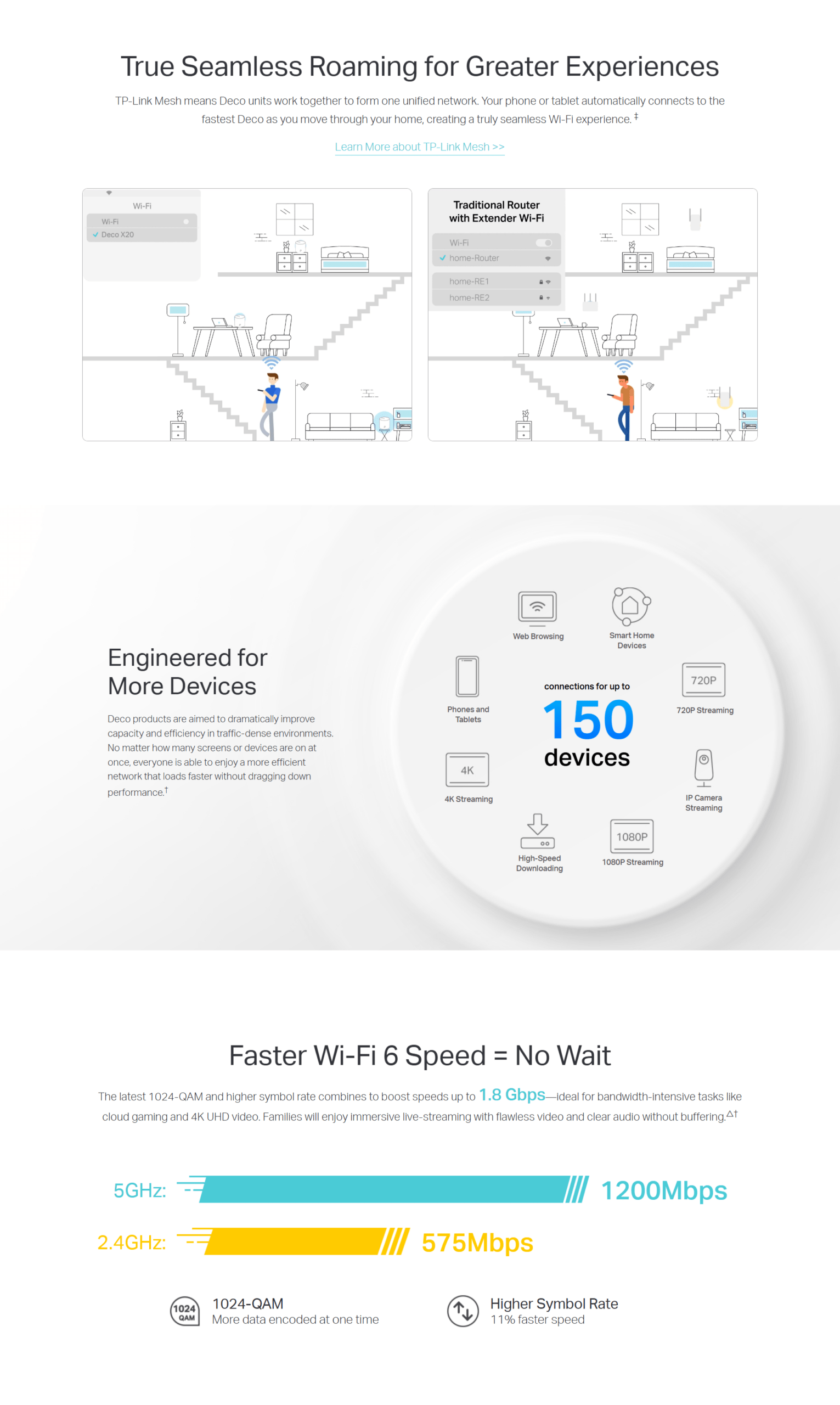

WiFi Capacity	High Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices
Working Modes	Router Mode Access Point Mode

SECURITY

Network Security

SPI Firewall
Access ControlHomeCare™ Antivirus

Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log

Guest Network

1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

WiFi Encryption

WPA-Personal
WPA2-Personal
WPA3-Personal

HARDWARE

Ethernet Ports

2× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing

Buttons

Reset Button

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeCare™
Parental Controls	HomeCare™ Parental Controls Youtube Restriction SafeSearch Custom Profiles Content Filtering URL FIltering Time Limit Time Schedule (Bed Time) Log Insight Usage Monitor Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	HomeCare™ QoS QoS by Device QoS by Application
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management Features	Deco App

OTHER

Network Services Enabled by Default

Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP

DNS
DNS
• Port: 53 Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP

App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP

TEST DATA
WiFi Transmission Power	CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz)

PHYSICAL
Dimensions (W×D×H)	4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm)
Package Content	Deco X20 (3-pack) 3 Deco X20 Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation GuideDeco X20 (2-pack) 2 Deco X20 Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation GuideDeco X20 (1-pack) 1 Deco X20 Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide

OTHERS
System Requirements	Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
Certifications	CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

^‡Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device.

^△Use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color require clients to also support the corresponding features.

^§Gigabit internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.

For HomeCare™ service, TP-Link reserves the right to modify the service and feature at any time.

Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

This Deco may not support all the mandatory features as ratified in IEEE 802.11ax specification.

Further software upgrades for feature availability may be required.
