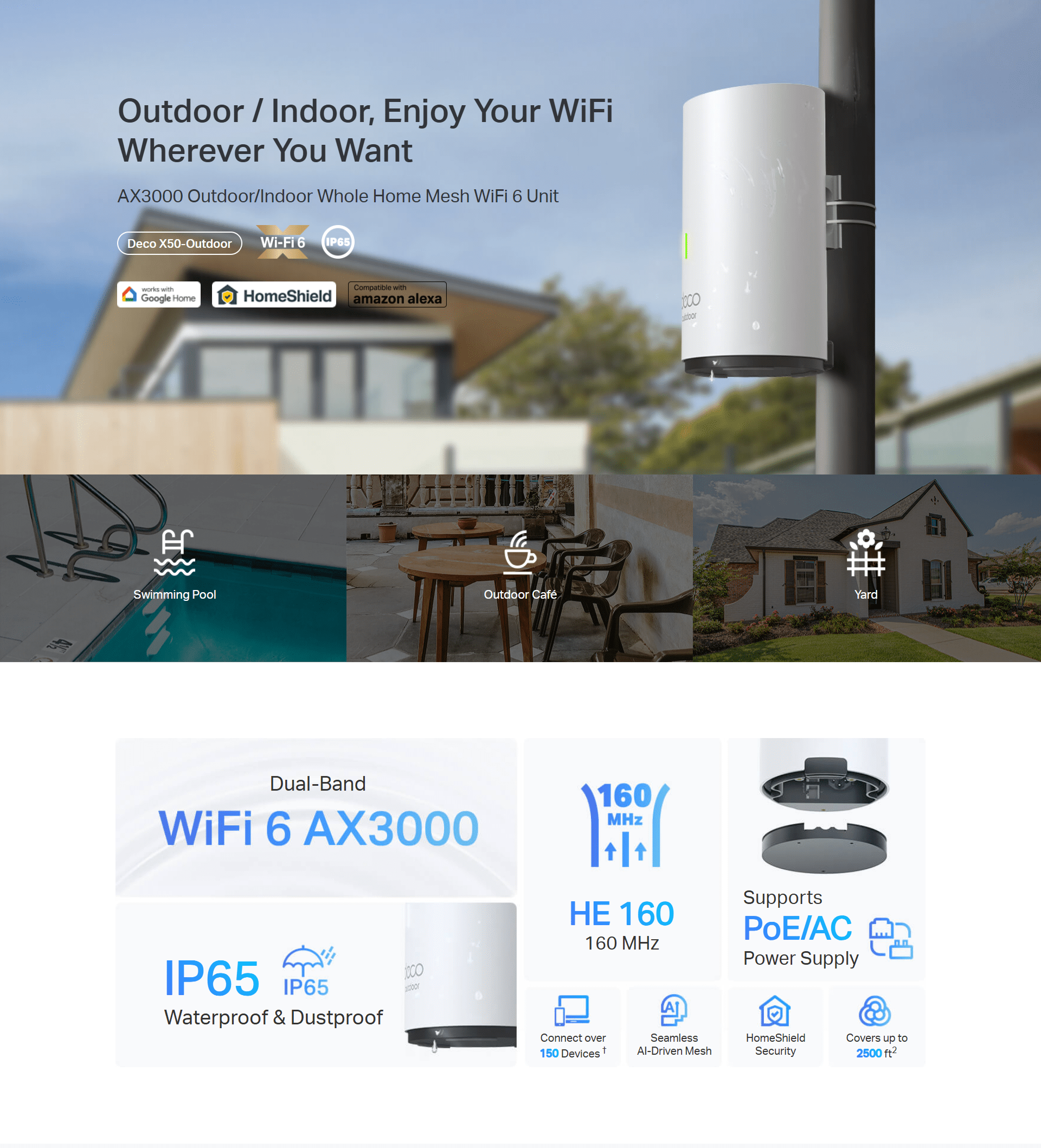

TP-Link Deco X50-Outdoor AX3000 Dual-Band Mesh Router (1 Pack)

WIRELESS
Standards and Protocols	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX3000 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 574Mbps (802.11ax)
WiFi Range	1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity	High Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices
Working Modes	Router, Access Point

SECURITY

Network Security

SPI Firewall
Access ControlHomeShield Security

Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network

1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

Wi-Fi Security

WPA/WPA2/WPA3

HARDWARE

Ethernet Ports

2 × Gigabit ports per Deco unit
(PoE and WAN/LAN auto-sensing)

Power

Power Input

IEEE 802.3at PoE or 100-240V~50/60Hz 0.5A AC

SOFTWARE
Protocols	IPv4 IPv6
Service Kit	HomeShield Learn More>
Parental Controls	HomeShield Parental Controls Youtube Restriction SafeSearch Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE L2TP PPTP
Quality of Service	HomeShield QoS QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management Features	Deco App

OTHER

Network Services Enabled by Default

Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP

DNS
DNS
• Port: 53 Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP

App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP

TEST DATA
WiFi Transmission Power	FCC: <30 dBm(2.4 GHz), <30 dBm(5 GHz) CE: <20 dBm (2.4 GHz), <30 dBm (5 GHz)

PHYSICAL
Dimensions (W×D×H)	4.3 × 4.8 × 8.5 in (110 × 121.3 × 215.5 mm)

OTHERS
Certification	CE, FCC, RoHS

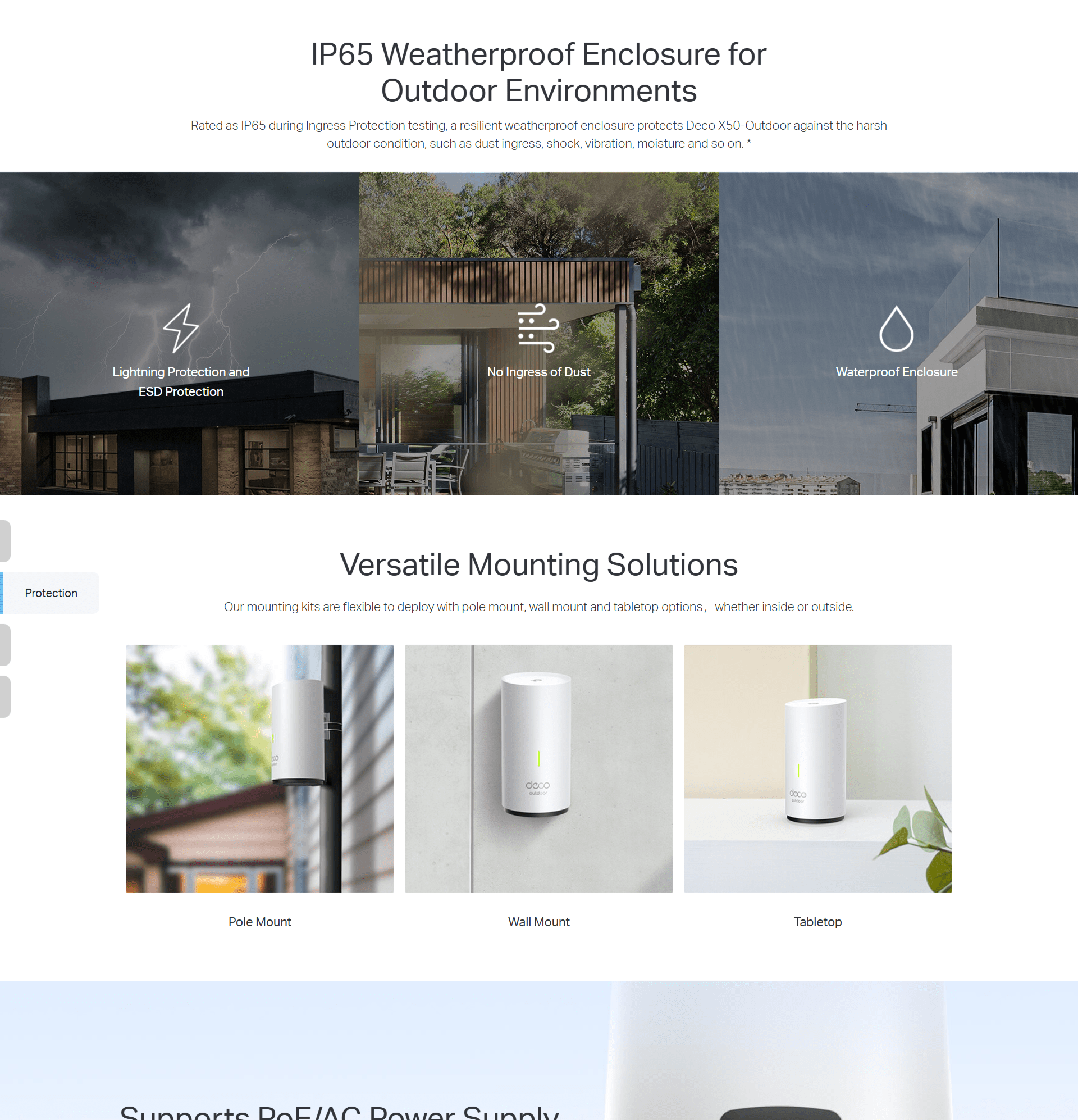

Package Content	1 × Deco X50-Outdoor unit 1 × AC Power Cord 1 × RJ45 Ethernet cable Wall/Pole Mounting Kit(Pole Mounting Strap, Plastic Wall Anchors, Self-tapping Screws ) Installation Guide
Environment	Operating Temperature: -30°C~60°C (-22°F~140°F) Storage Temperature: -40°C~70°C (-40 °F~158 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH

For additional version information, please go to the support page.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

^‡Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client’s device.

^△Uses of WiFi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color require clients to also support the corresponding features.

^§Gigabit internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.

*Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.

**HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.

Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

This Deco may not support all the mandatory features as ratified in IEEE 802.11ax specification.

Further software upgrades for feature availability may be required.

Google and Google Home are trademarks of Google LLC.
