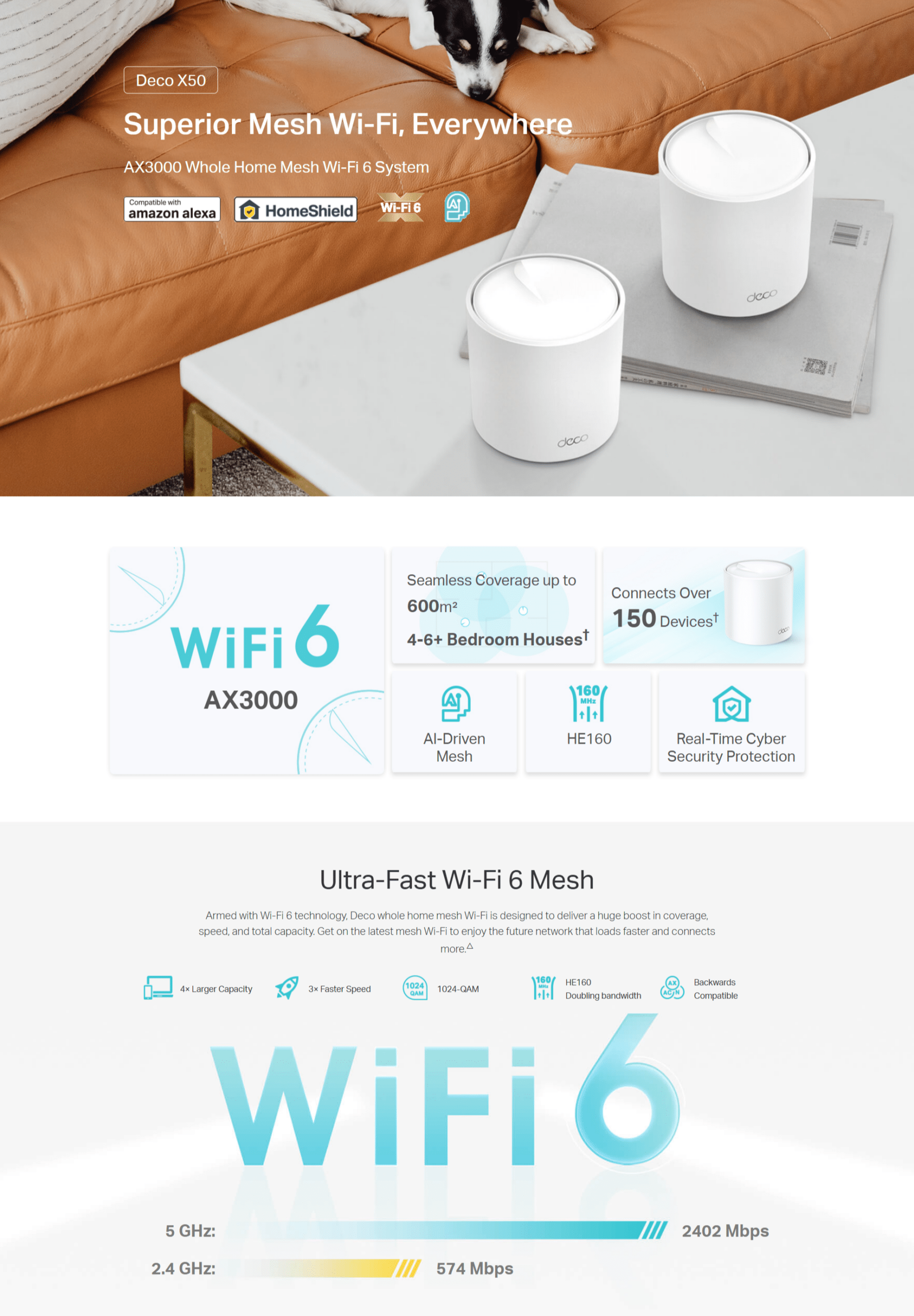

Deco X50 AX3000 Whole Home Mesh Wi-Fi 6 System

Price range: 5,950.00৳ through 17,850.00৳

  • AX3000 Dual Band Wi-Fi – Super-fast Wi-Fi 6 with speeds up to 3.0 Gbps
  • 4 Streams, Less Lag – 2×2/HE160 2402 Mbps + 2×2 574 Mbps
  • Gigabit Wired Speed – 3× Gigabit ports provide sufficient connectivity§

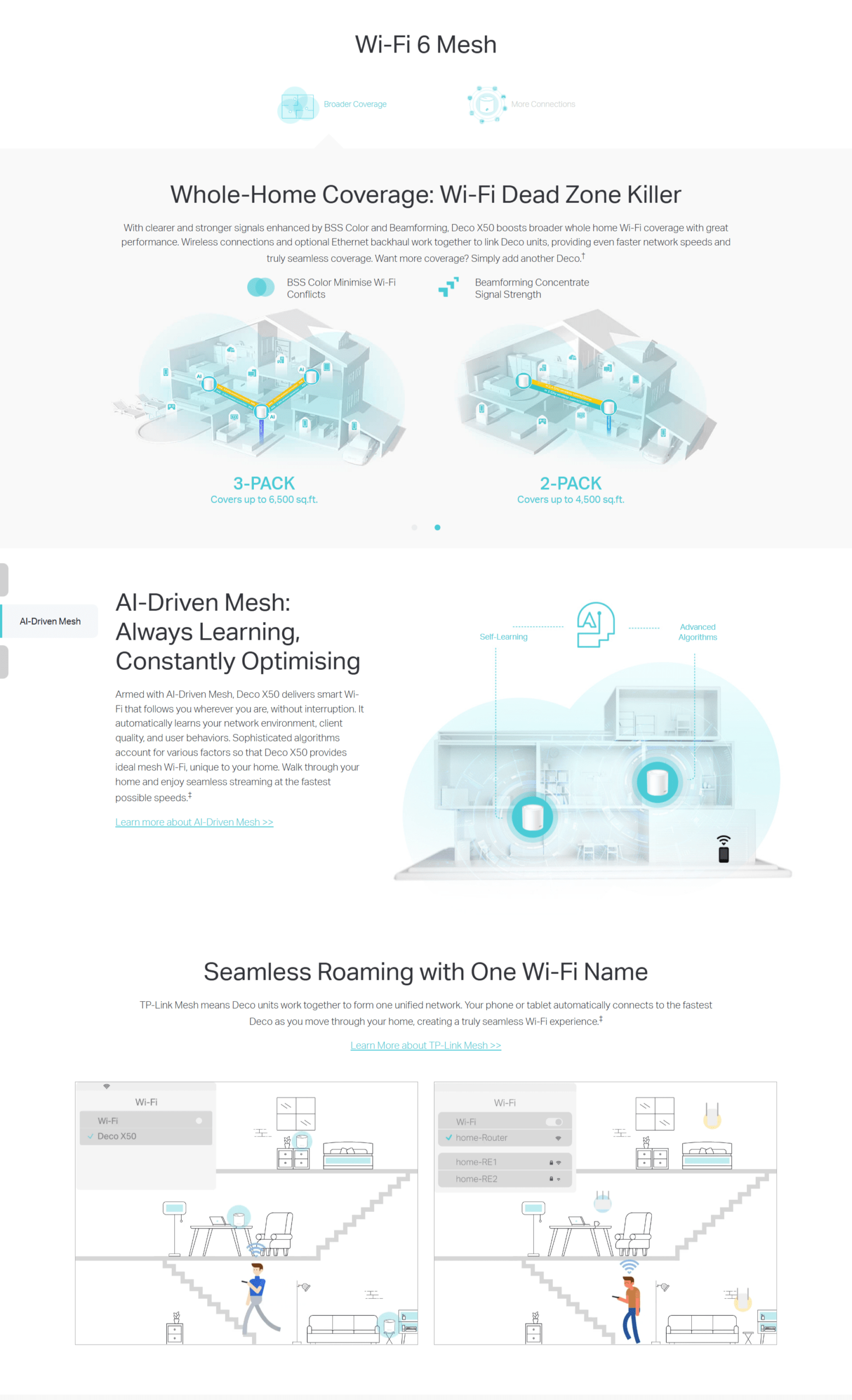

  • Boosted Seamless Coverage – Seamless mesh Wi-Fi coverage up to 600m² (3-pack)
  • AI-Driven Mesh – Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
  • TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT protection*
  • Setup Made Easier Than Ever – The Deco app walks you through the setup step-by-step
SKU: N/A Categories: , Brand:

Deco X50 AX3000 Whole Home Mesh Wi-Fi 6 System



WIRELESS

Standards and ProtocolsWi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi SpeedsAX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range1-3 Bedroom Houses (1-pack)


TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

2× Internal Antennas (Deco X50 V1.0~V2.0)
3× Internal Antennas (Deco X50 V3.0)

WiFi CapacityHigh


Dual-Band
Distribute devices to different bands for optimal performance

2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

4 Streams
More than enough bandwidth for connected devices

Working ModesRouter Mode
Access Point Mode

SECURITY

Network SecuritySPI Firewall
Access ControlHomeShield Security


Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network1× 5 GHz Guest Network
1× 2.4 GHz Guest Network


Effective Time
Bandwidth Control

VPN Server• Open VPN Server
• PPTP VPN Server
• L2TP VPN Server
VPN Client• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
WiFi EncryptionWPA-Personal
WPA2-Personal
WPA3-Personal

HARDWARE

ButtonReset Button
Ethernet Ports3× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing

SOFTWARE

Advanced Features• Reboot Schedule
• Tapo/Kasa onboarding
• IoT network & Device Isolation
• Static Router Function
• Node/Band Connection Preference
ProtocolsIPv4
IPv6
Service KitsHomeShield
Learn More>
Parental ControlsHomeShield Parental Controls


Youtube Restriction
SafeSearch
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

WAN TypesDynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of ServiceHomeShield QoS


QoS by Device

Cloud ServiceOTA Firmware Upgrade
TP-Link ID
DDNS
NAT ForwardingPort Forwarding
UPnP
IPTVIGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCPAddress Reservation
DHCP Client List
Server
DDNSTP-Link
Management FeaturesDeco App

OTHER

Network Services Enabled by DefaultWeb Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP


DNS
DNS
• Port: 53   Protocol: TCP & UDP


DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP


App management
Manage and configure device through app
• Port: 22   Protocol: TCP
• Port: 20001   Protocol: TCP
• Port: 30001   Protocol: TCP
• Port: 20002   Protocol: UDP

TEST DATA

WiFi Transmission PowerCE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)

PHYSICAL

Dimensions (W×D×H)4.33 × 4.33 × 4.49 in
(110 × 110 × 114 mm)
Package ContentDeco X50 (1-pack)
1 Deco X50 unit
1 RJ45 Ethernet cable
1 Power adapter
1 Quick Installation GuideDeco X50 (2-pack)
2 Deco X50 units
1 RJ45 Ethernet cable
2 Power adapters
1 Quick Installation GuideDeco X50 (3-pack)
3 Deco X50 units
1 RJ45 Ethernet cable
3 Power adapters
1 Quick Installation Guide

OTHERS

System RequirementsAndroid 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
CertificationsCE, FCC, RoHS, RCM
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device.

Use of WiFi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, HE160 and BSS Color require clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.

§Gigabit internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.

*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.

Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

This Deco may not support all the mandatory features as ratified in IEEE 802.11ax specification.

Further software upgrades for feature availability may be required.

Google and Google Home are trademarks of Google LLC.
